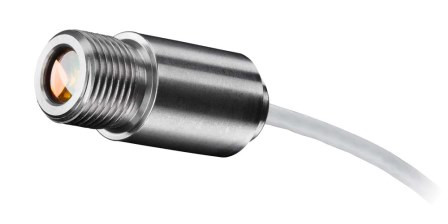

CT-3M – Optris
Precise non-contact infrared temperature measurement for metal from 50 °C ... 1800 °C.
One of the smallest infrared sensors worldwide . This sensor is specially developt for metal applications and ceramic materials. By measuring at a spectral range of 2.3 μm there is no influence on the measurements from reflections. With the electronicbox it’s very easy to select an output signal. The sensorhead can be used in very high ambient temperatures which makes it suitable for industrial applications. The infraredsensor is available in different optical resolutions, cable lengths and digital interfaces.
Technical specifications
Spectral range: 2.3 μm
Temperature range: 50°C to 1800°C
Optical resolution: 22:1 / 33:1 / 75:1
Smallest spot: 3,4 mm @ 110 mm
Ambient temperature: –20 °C ... 85 °C (sensing head)
0 °C ... 85 °C (electronics)
Outputs/analog: 0/4 – 20 mA, 0 – 5/10 V, thermocouple J, K, alarm output
Outputs/digital: USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional)
