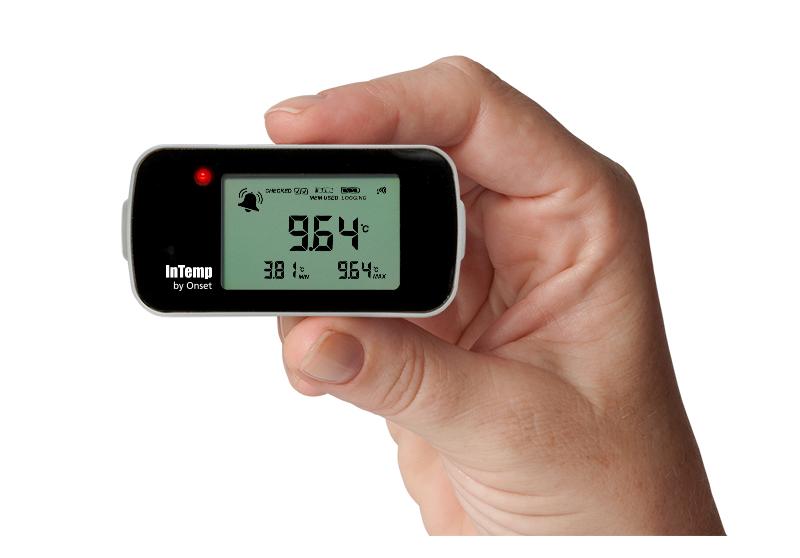

InTemp CX403 Temperature Data Logger
Cold chain wireless Bluetooth data logger with a temperature sensor for ambient temperature measurements, to be used with the InTemp mobile apps or connectable to the CX gateway via Bluetooth for automatic reading of the data.
Professional-Grade Temperature Monitoring for Cold Chain and Regulated Environments
The InTemp CX403 is a high-precision, wireless temperature data logger designed for monitoring refrigerators, freezers, and other temperature-controlled environments. Ideal for applications requiring compliance with global Good Distribution Practice (GDP) requirements and 21 CFR Part 11 regulations.
Key Features
- Bluetooth Low Energy: Wireless communication with mobile devices for easy setup and data retrieval
- High Accuracy: Internal sensor provides ±0.5°C accuracy for reliable temperature measurements
- LCD Display: Built-in screen shows current, daily min, and max temperatures
- Advanced Alarms: Audible and visual alerts for temperature excursions
- Battery Powered: Ensures continuous operation during power outages
- 21 CFR Part 11 Compliant: Integrates with mobile and cloud platforms for regulatory compliance
- Secure Reporting: Create and share non-customizable PDF reports via the InTemp app
Technical Specifications
- Temperature Range: [Insert range]
- Accuracy: ±0.5°C
- Resolution: [Insert resolution]
- Memory: [Insert capacity]
- Logging Interval: [Insert range]
- Battery Life: [Insert duration]
- Wireless Range: 20-25 meters (with optional CX Gateway)
- Dimensions: [Insert dimensions]
- Weight: [Insert weight]
Applications
- Pharmaceutical cold chain
- Vaccine storage
- Blood and tissue banks
- Food safety
- Laboratory refrigerators and freezers
- Medical storage facilities
Benefits
- Regulatory Compliance: Meets GDP requirements and 21 CFR Part 11 standards
- Easy Data Access: Wireless setup and download via smartphone or tablet
- Reliable Monitoring: Continuous logging even during power outages
- Instant Alerts: Advanced alarm capabilities for immediate notification of temperature excursions
- Streamlined Reporting: Generate secure PDF reports directly from the InTemp app
- Remote Monitoring: Optional CX Gateway enables automatic data downloads and remote notifications
InTemp Mobile App Features
- View data and check logger status
- Set custom alarms
- Create and share secure PDF reports
- Easily manage multiple loggers
The InTemp CX403 Data Logger offers a robust and user-friendly solution for temperature monitoring in regulated environments. Its combination of high accuracy, wireless connectivity, and compliance features makes it an ideal choice for professionals in pharmaceutical, healthcare, and food safety industries.
Technical specifications
Internal temperature sensor range: -30° to 70°C
Accuracy: ±0,5°C from -15° to 70°C, ±1,0°C from -30° to -15°C
Data logger working range: -30° to 70°C
Logging interval: 1 second to 18 hours
Battery type: 2x AAA 1.5V alkaline or lithium batteries, independently replaceable
Battery life: 1 year with a typical logging interval of 1 minute
Memory: 128 KB (84,650 measurements, maximum)
Display: LCD display is visible from 0°C to 50°C
Rating: IP54
Optional with calibration
