Lutron WA-2017SD
Product Description

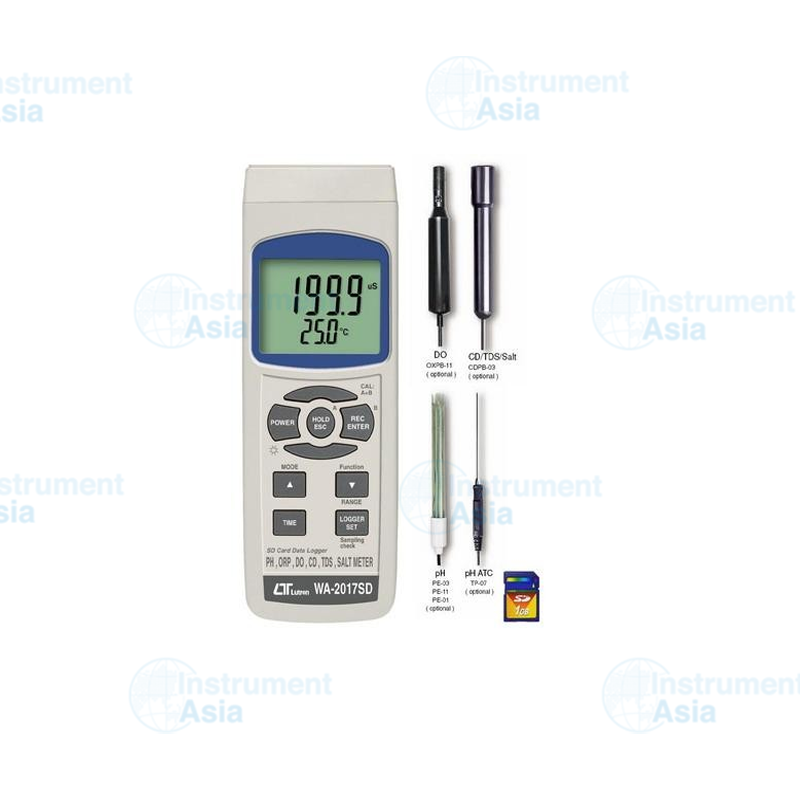

Lutron WA-2017SD Multi Water Quality Meter 7-in-1 with SD Card Data Logger
The Lutron WA-2017SD is a versatile multi-functional water quality meter designed for comprehensive testing and real-time data recording. This 7-in-1 device allows you to measure essential water parameters and logs data directly onto an SD card, which can be easily transferred to Excel without the need for additional software.
Key Features:
- Multi-parameter Measurement: Capable of testing pH/ORP, Conductivity/TDS, Dissolved Oxygen, and Salt content.
- Measurement Ranges:
- pH: 0 to 14.00 pH
- ORP (Oxidation-Reduction Potential): ±1,999 mV
- Conductivity: 200 µS/2 mS/20 mS/200 mS
- TDS (Total Dissolved Solids): 200/2,000/20,000/200,000 PPM
- Salt: 0 to 12.0% salt (by weight)
- Dissolved Oxygen: 0 to 20.0 mg/L
- Automatic Temperature Compensation (ATC): Ensures accurate readings across varying temperatures.
- Data Logging: Real-time data recording on an SD card with easy transfer to Excel, requiring no extra software.
- Convenient Features: Includes data hold, maximum/minimum recording, and RS232/USB interfaces for easy data management.
Included Accessories:
- WA-2017SD Device
- Conductivity/TDS and Salt Probe (CDPB-03)
- Hard Carrying Case (CA-06)
- Instruction Manual
Optional Accessories:
- Additional Probes:
- Oxygen Probe (OXPB-11)
- pH Probes (PE-11, PE-01, PE-06HD, PE-04HD, PE-03K7)
- ORP Probe (ORP-14)
- Temperature Probe (TP-07)
- Power Adapter (AP-9V220)
- USB Cable (USB-01)
- RS232 Cable (UPCB-02)
- Data Acquisition Software (SW-U801-WIN)
The Lutron WA-2017SD is ideal for professionals needing accurate and reliable water quality measurements with the added convenience of easy data management and reporting.
Technical specifications
Measurement Range Resolution Accuracy
PH 0 to 14 PH 0.01 PH ± (0.02 PH + 2 d)
mV 0 to 1999 mV 1 mV ± (0.5% + 2 d)
Conductivity μS 0 to 200.0 μS 0.1 μS ± (2% F.S. + 1 d)
mS 0.2 to 2.000 mS 0.001 mS
2 to 20.00 mS 0.01 mS
20 to 200.0 mS 0.1 mS
Total Dissolved Solids 0 to 132 PPM 0.1 PPM ± (2% F.S. + 1 d)
132 to 1,320 PPM 1 PPM
1,320 to 13,200 PPM 10 PPM
13,200 to 132,000 PPM 100 PPM
Temperature 0 to 60ºC 0.1ºC ± 0.8ºC
Salt 0 to 12% salt 0.01% salt ± 0.5% salt
Dissolved oxygen mg/L 0 to 20.0 mg/L 0.1 mg/L ± 0.4 mg/L
% O2 0 to 100.0% O2 0.1% O2 ± 0.7% O2
Circuit Custom one-chip of microprocessor LSI circuit
Sampling time 1 second
Data storage SD memory card 1 to 16 GB
Interface RS232, USB PC interface
Functions Data hold, Record max./ min., Auto power off
Power requirement Battery AA x 6
Dimensions/ Weight 177 x 68 x 45 mm/ 489 g
