Optris Bottom up Glass Inspection System (GIS)

New Glass Inspection System (GIS) from Optris, infrared temperature measurement in the production of Low-E glass.

New

With the new Glass Inspection System (GIS) from Optris, there is a new way for infrared temperature measurement in the production of Low-E glass. This makes it possible to quickly detect differences in temperature, avoiding rejections and allowing automatic quality control. Low-emission glass presents a major challenge for infrared equipment that traditionally measures the glass temperature from above when the windows are removed from the oven.

The combination of two VGA infrared cameras with a maximum field of view of 1110   results in an excellent 1600 pixels lines scan resolution and a maximum scanning width of 4.3 meters.

An ultra-fast CTlaser 4M pyrometer with 90 µs exposure, combined with the Digitally Controlled Lens Protection System (DCLP), is a reliable protection mechanism of both infrared cameras in the event of glass breakage. In addition, automatic emissivity corrections are made for standard and low-E glass. This system has been specially developed for process control in glass-hardening machines.

Important Specifications:

  • Compact bottom up system for bottom up measurement which coating operates independently
  • Integrated ultra-fast glass breakage detection combined with a digitally controlled lens protection system (DCLP) eliminating the need for additional air purification
  • Glass surface calculation
  • Pre-assembled system for easy installation on glass curing furnaces
  • Automatic scan line adjustment – ​​impervious to disturbances

Also read this article from: Glas in Beeld

Technical specifications

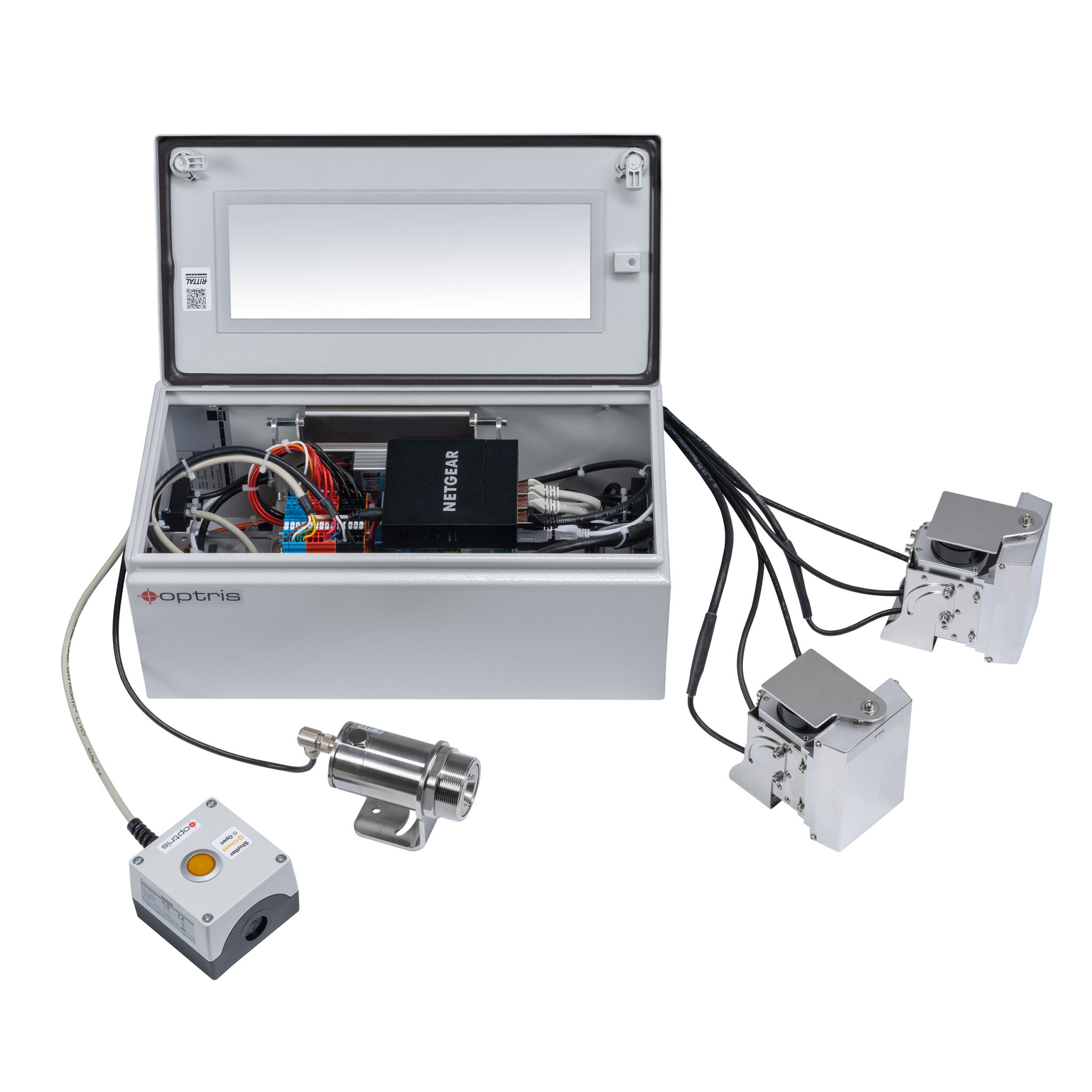

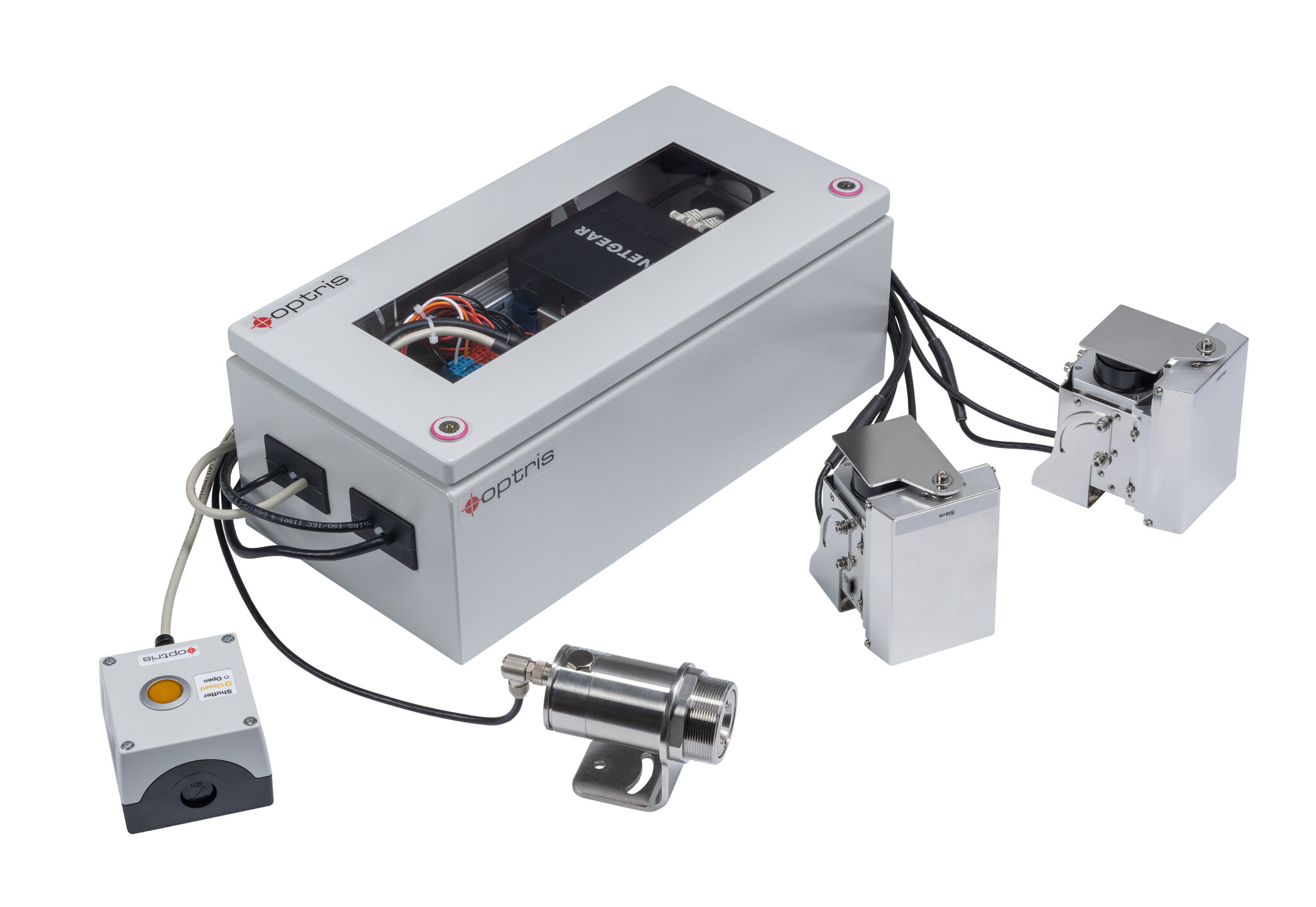

Scope of supply Bottom up glass inspection system:

• Either PI 640i G7 imager with 90° or 60° FOV imager or PI 450i G7 imager with 80° or 53° FOV

• 2x Industrial Process Interface

• CTlaser 4ML glass breakage sensor with USB interface

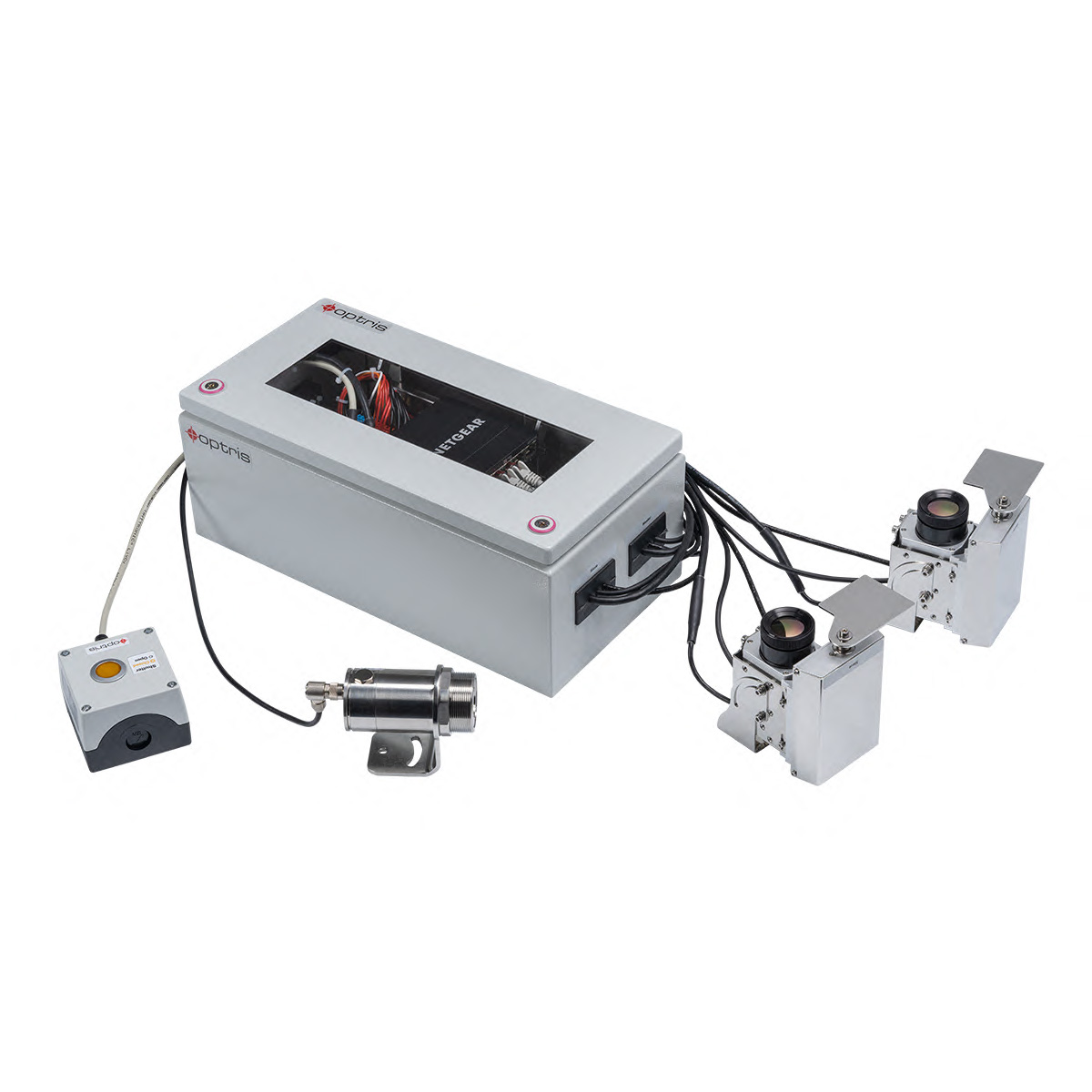

• 2x DCLP Shutter system with mounting brackets for imagers

• 2x USB Server Gigabit

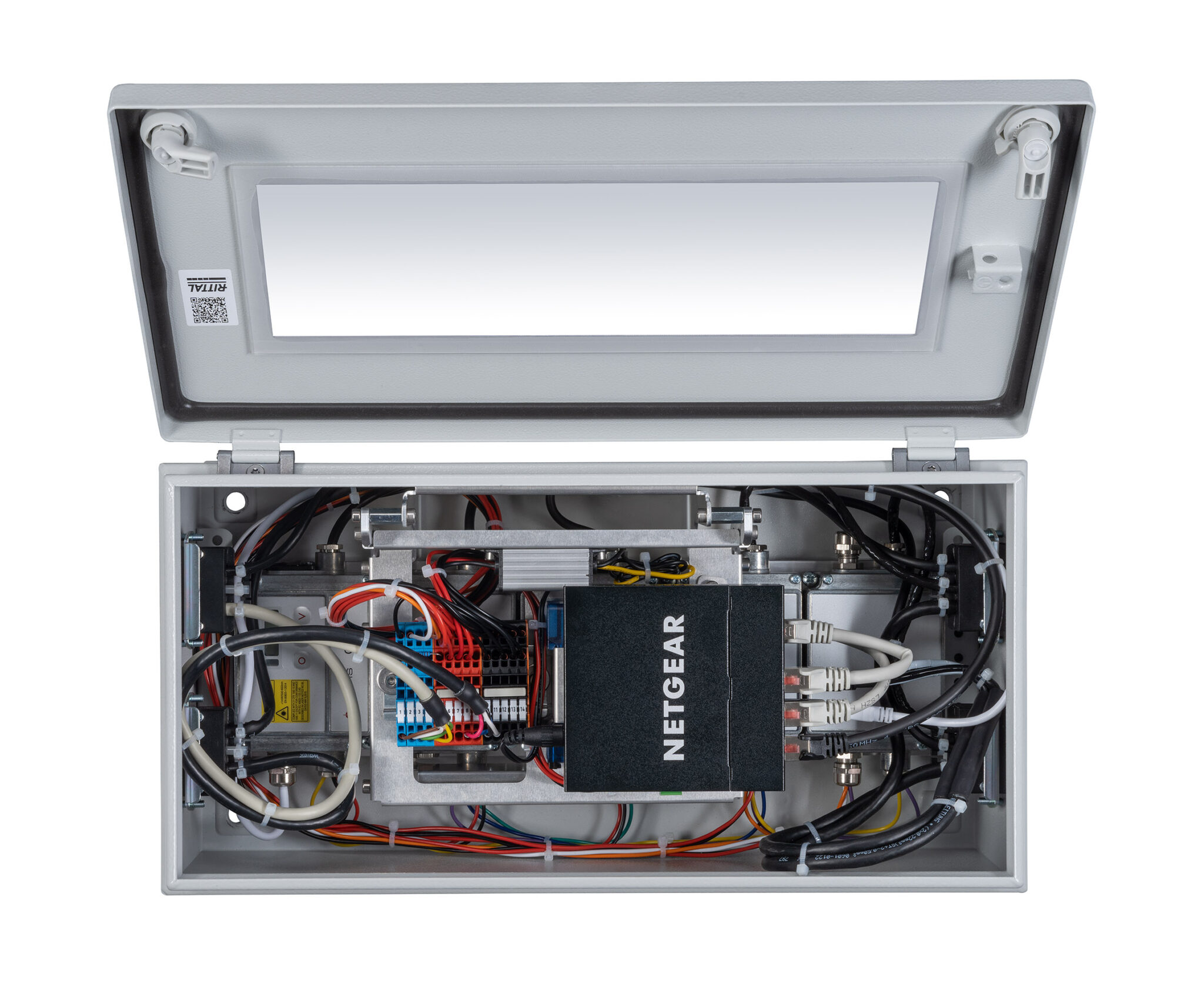

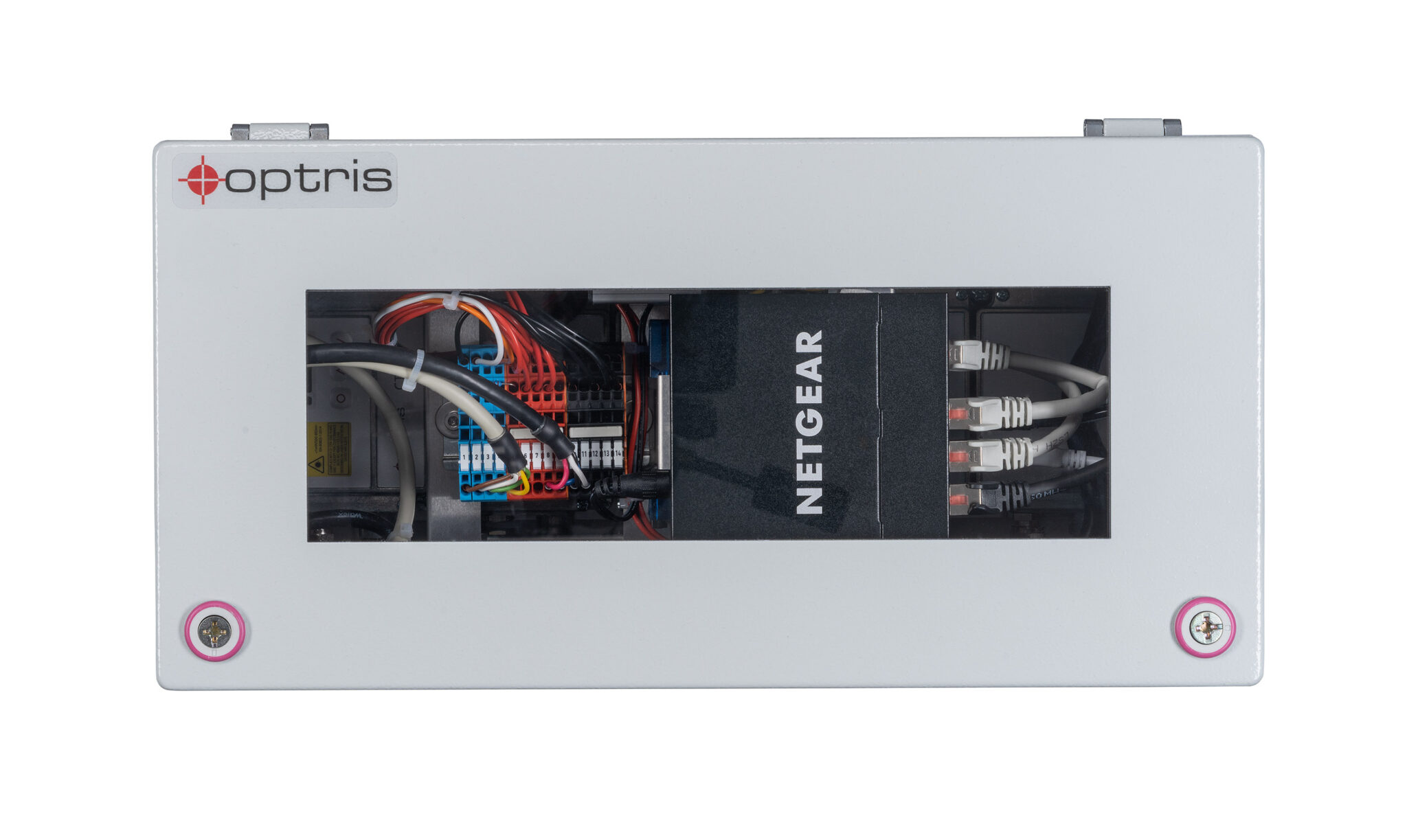

• Control cabinet with cable set (10 m each) and remote control box

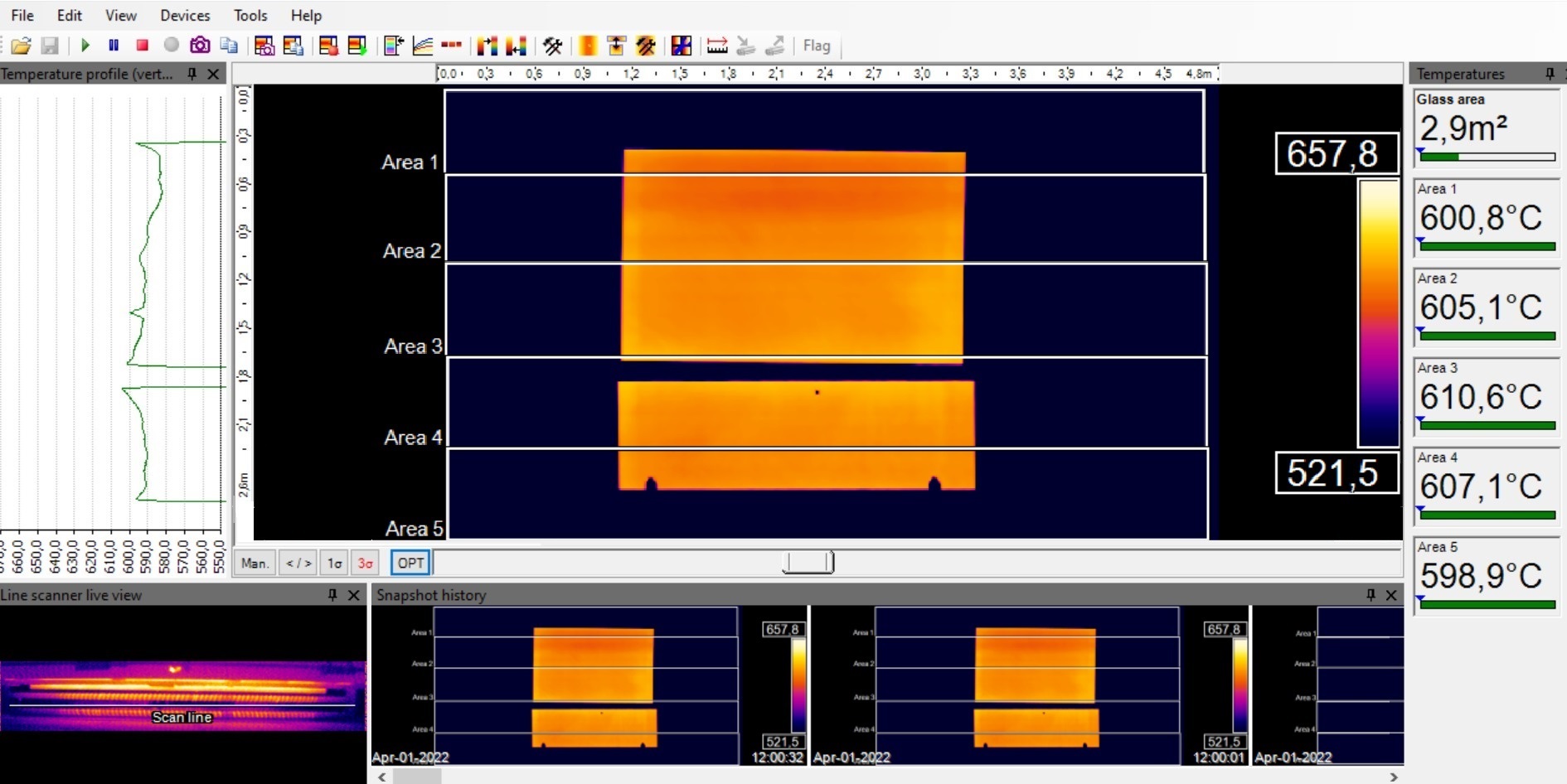

• Software package

• 100-230 V AC/ 24 V DC power supply for initial start-up

Technical details optris PI 450i G7 / 640i G7

• Scope of supply:

USB camera incl. 1 lens,

USB cable (1 m),

table tripod,

PIF cable incl. terminal block (1 m),

software package optris PIX Connect,

Rugged outdoor transport case (IP67)

• Detector: (FPA, uncooled)

PI 450i G7: 17 µm x 17 µm

PI 640i G7: 17 μm x 17 μm

• Optical resolution:

PI 450i G7: 382 x 288 pixels

PI 640i G7: 640 x 480 pixels

• Spectral range: 7.9 µm

• Measurement ranges:

150 °C to 900 °C

200 °C to 1,500 °C

• Sighting range: 0 °C to 250 °C

• Frame rate:

PI 450i G7: 80 Hz/ switchable to 27 Hz

PI 640i G7: 32 Hz / 125 Hz @ 640 x 120 pixels

• Optics (FOV) PI 450i G7:

53° x 38° FOV / f = 7,7 mm or

80° x 54° FOV / f = 5,7 mm

• Optics (FOV) PI 640i G7:

60° x 45° FOV / f = 10.5 mm or

90° x 64° FOV / f = 7.7 mm

• PI 450i G7: Thermal sensitivity (NETD) at Tobj= 650 °C: 150 mK

PI 640i G7: Thermal sensitivity (NETD) at Tobj= 650 °C: 80 mK

• System accuracy (at ambient temperature 23 ± 5°C): ±2 °C or ±2 %

• PC interface: USB 2.0

• Process interface (PIF):

Standard PIF: 0-10 V input, digital input (max. 24V), 0-10 V output

Industrial PIF: 2x 0-10 V inputs, digital input (max. 24 V), 3x 0-10V outputs, 3x relay (0-30 V/ 400 mA), fail-safe relay

• Ambient temperature (TAmb):

PI 450i G7: 0 °C...70 °C

PI 640i G7: 0 °C...50 °C

• Storage temperature:

PI 450i G7: -40 °C...85 °C

PI 640i G7: -40 °C...85 °C

• Relative humidity: 10 - 95 %, non-condensing

• Enclosure (size / rating):

PI 450i G7: 46 mm x 56 mm x 68 - 77 mm (depending on lens + focus position) / IP 67 (NEMA 4)

PI 640i G7: 46 mm x 56 mm x 76 - 100 mm (depending on lens + focus position) / IP 67 (NEMA 4)

• Weight:

PI 450i G7: 237 - 251 g (depending on lens)

PI 640i G7: 269 - 340 g (depending on lens)

• Shock / vibration:

PI 450i G7: 25G und 50G, IEC 68-2-27 / IEC 68-2-6 (sinus shaped), IEC 68-2-64 (broadband noise)

PI 640i G7: 25G und 50G, IEC 68-2-27 / IEC 68-2-6 (sinus shaped), IEC 68-2-64 (broadband noise)

• Tripod mount: 1/4-20 UNC

• Power supply: USB powered

Technical Details of the optris CTlaser 4M

• Temperature range1) (scalable via software):'

0°C ... 500°C (4ML)

• Spectral range: 2.2 – 6 μm

• Optical resolution (90% energy):

30:1 (4ML)

• System accuracy2) (at Tamb= 23 ± 5°C): ± (0.3% of reading + 2°C)

• Repeatability (at Tamb = 23 ± 5°C): ± (0.1% of reading + 1°C)

• NETD: 120 mK

• Exposure time (90% signal)3): 90 μs

• Emissivity / Gain (adjustable via programming keys or software): 0.100 - 1.100

• Transmissivity / Gain (adjustable via programming keys or software): 0.100 - 1.100

• Signal processing (parameter adjustable via programming keys or software, respectively):

peak hold, valley hold, average, extended hold function with threshold and hysteresis

• Environmental rating: IP 65 (NEMA-4)

• Ambient temperature:

sensing head: -20°C ... 70°C (sensing head, 50°C with laser ON)

electronics: -20°C ... 70°C (electronics)

• Storage temperature:

sensing head: -40°C ... 85°C (sensing head)

electronics: -40°C ... 85°C (electronics)

• Relative humidity: 10 - 95%, non condensing

• Vibration: IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)

• Shock: IEC 60068-2-27 (25G and 50G)

• Weight:

sensing head: 600 g

electronics: 420 g

• Outputs / analog: 0/4 - 20 mA, 0-5/10 V, thermocouple K, alarm

• Output / alarm: 24 V / 50 mA (open collector)

• Relay (optional): 2 x 60 V DC/42 V ACeff; 0.4 A; optically isolated

• Outputs/ digital (optional):

built-in USB-interface

Optional: RS232, RS485, Ethernet

• Output impedances:

mA max. 500 Ω (with 5 - 36 V DC)

mV min. 100 kΩ load impedance

thermocouple 20 Ω

• I/O Pins (3x): flexible programming as in- or output: external emissivity adjustment, ambient temperature

compensation, uncommitted value, trigger (reset of hold functions), alarm output (open collector 24 V/50 mA)

• Cable length: 3 m (standard), 8 m, 15 m

• Power supply: 8-36 V DC

• Current draw: max. 160 mA

• Laser 635 nm: 1mW, ON/OFF via electronic box or software
