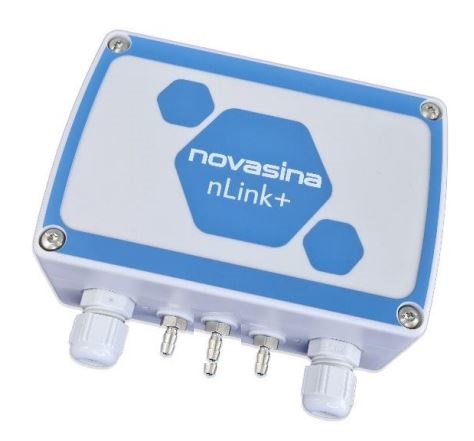

PASCAL-nLink+ IP AS C – Novasina
Differential pressure sensor with analogue outputs for cleanroom applications: -5000... +5000Pa
The PASCAL-nLink+ IP AS C is a single-channel transmitter with 2 analog signal outputs for the continuous measurement of differential pressure in an IP64 housing. Bi-directional differential pressure transmitter based on dynamic (mass flow) measurement with an absolute pressure sensor. IP64 transmitter with analog outputs (mA or V), can be equipped with a second dP sensor (nLink+ IP AS AA). Configuration with USB cable for Android smartphones or Windows PC. Configuration possible without external power supply.
Technical specifications
Measurement range: -5000... +5000Pa
Accuracy: +/- 1.00%
Power supply voltage: 24VDC
Analog output: 0(4)... 20mA / 0(2)...10V
Overpressure: max. 2 bar
Compensation: via built-in absolute pressure sensor
Programming: using configuration cable for nLink and Android or Windows software (free to download)
