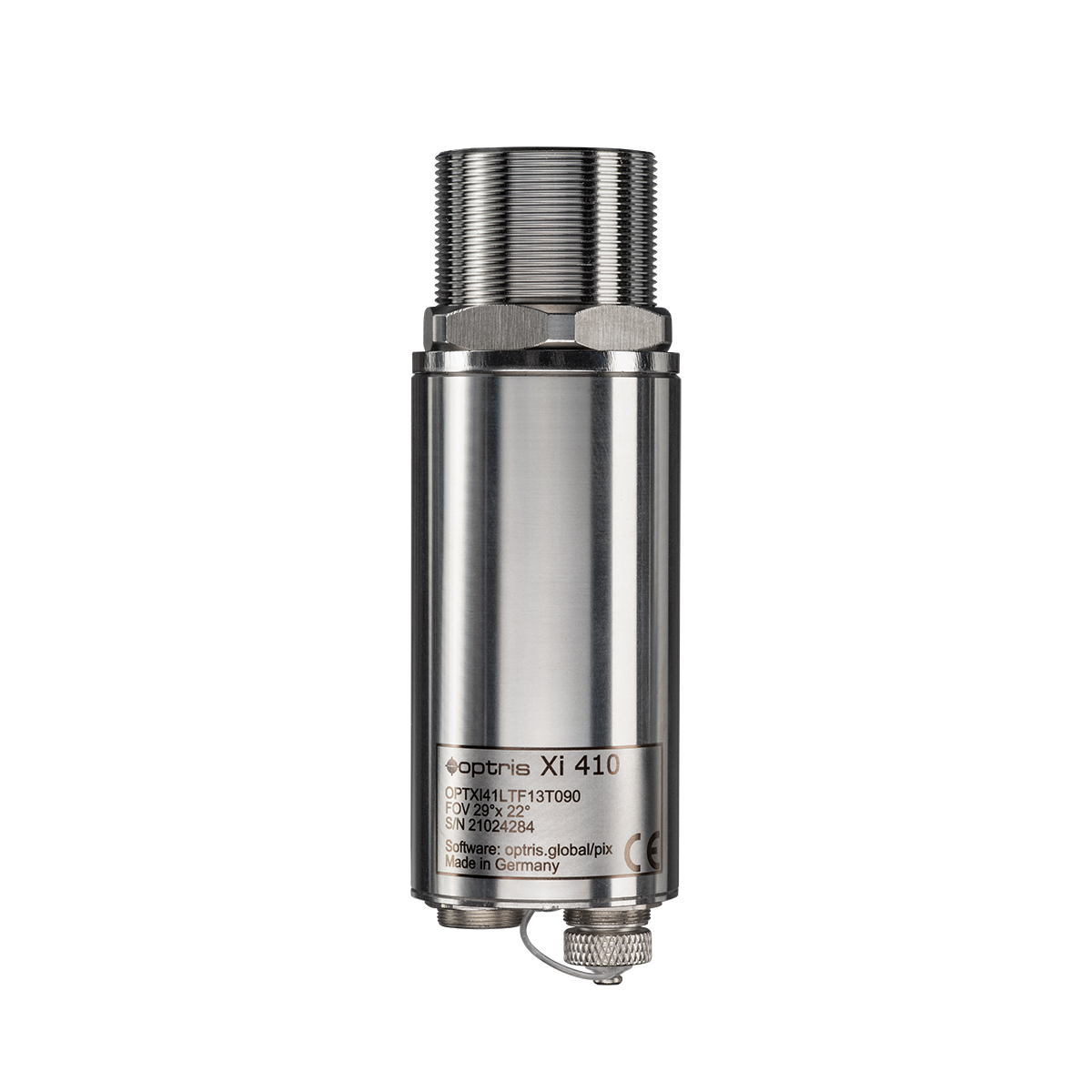

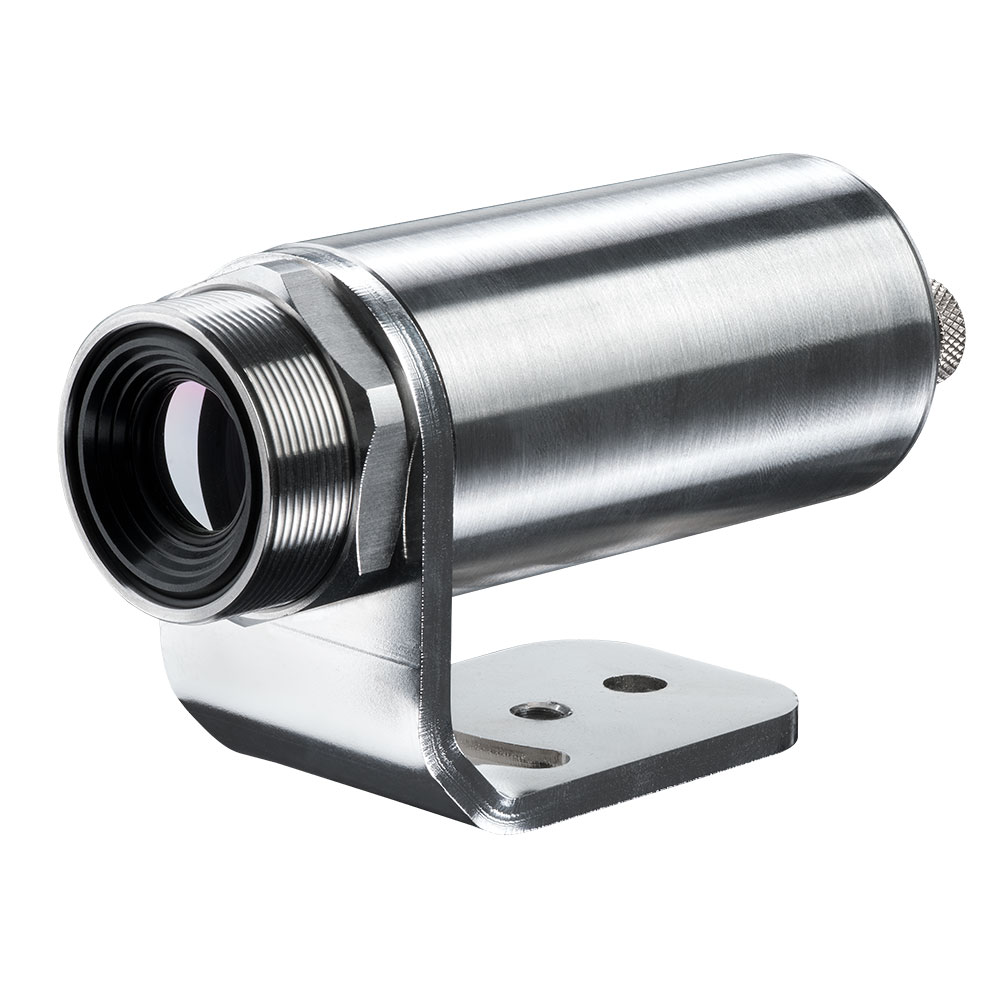

Xi 410 – Optris
Compact spot finder IR camera Xi 400, 384x240 pixels

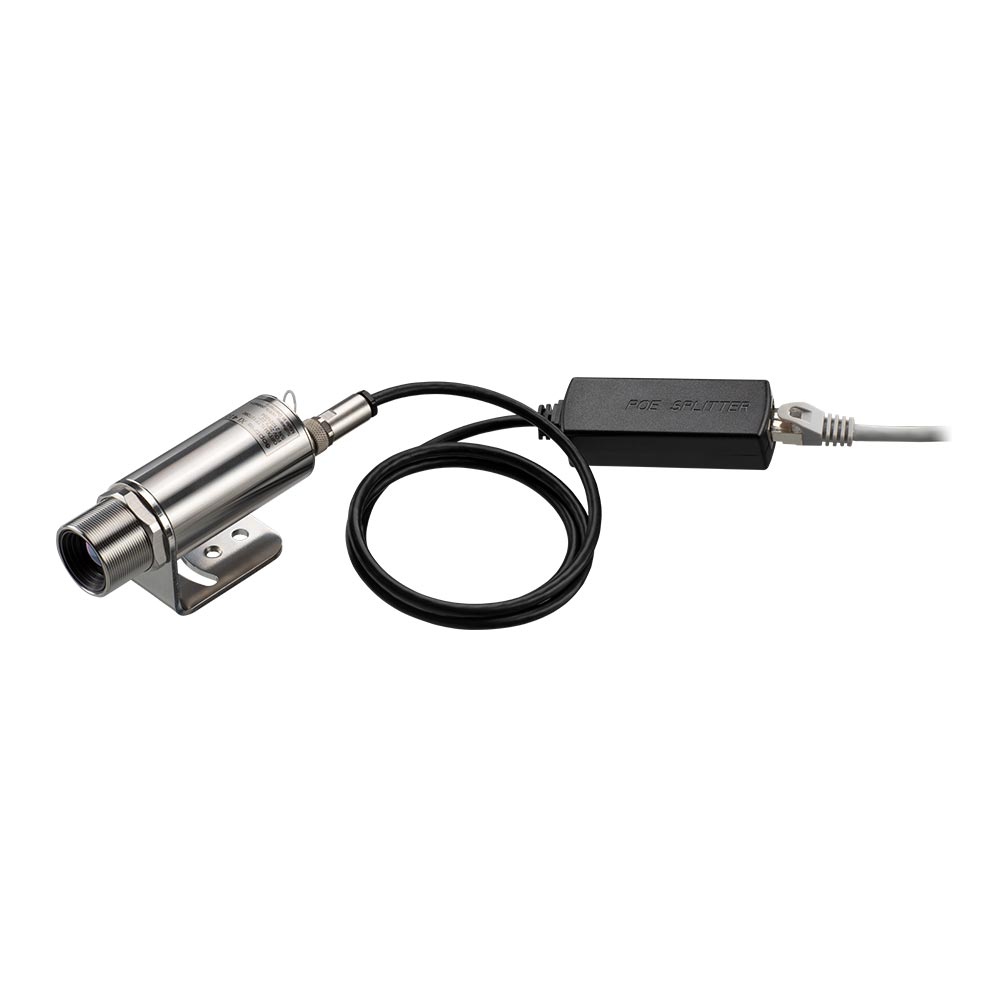

The Xi 410 has a fast Ethernet interface and can be powered by PoE. This allows for a simple installation, even if the distance from the PC is large. The built-in hot spot finder function can be used to reliably measure moving objects without having to reposition the camera. If the network connection is interrupted or if the connected PC has a problem, the camera immediately switches to the autonomous stand-alone mode which ensures a continuous measurement and alarm. Thus the reliability of problem detection (typically exceeding a threshold in the context of monitoring a fire outbreak) is maintained. Thanks to this unique feature, the Xi 410 is ideal for all safety applications related to fire prevention, detection of critical hot spots, monitoring of industrial equipment and storage of all kinds.
The Xi 410 incorporates a motorized remote focus, controlled by the free PIX Connect software. The resolution of the camera is 384 x 240 pixels with a frame rate of 25 Hz.
Technical specifications
Spectral range: 8 - 14 μm
Optical resolution: 384 x 240 pixels
Temperature ranges: -20°C to 100°C, 0°C to 250°C, 150°C to 900°C
Frame Rate Ethernet: 384 x 240 pixels @ 25 Hz
Frame Rate USB: 384 x 240 pixels @ 4 Hz
Frame Rate autonomous operation: 384 x 240 pixels @ 1.5 Hz
Optics: 18° x 14° (f = 20)
29° x 28° (f = 13)
53° x 31° (f = 8)
80° x 44° (f = 6)
Thermal sensitivity (NETD): 80 mK
PC interface: Fast Ethernet / USB 2.0
Process interface (PIF), industrial: 3x analog outputs (0/4–20 mA or 0–10 V) and 3x alarm outputs (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay) stackable up to 3 PIFs; electrically isolated
Ambient temperature (TAmb): 0 °C...50 °C
Focus: Manual motor focus
Optional with calibration
